名言表示付き日めくりカレンダー(デジタル)を作る

M5Stack PaperS3という電子ペーパーディスプレイモジュールを使って日めくりカレンダーを作成しました。毎日変わる名言付き。

英語解説(Hackster)はコチラ

特長
Arduinoコード

特長

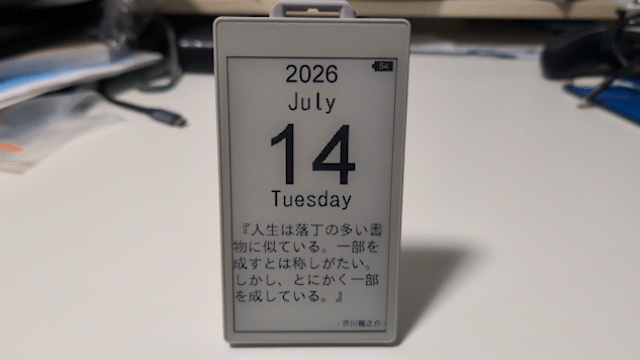

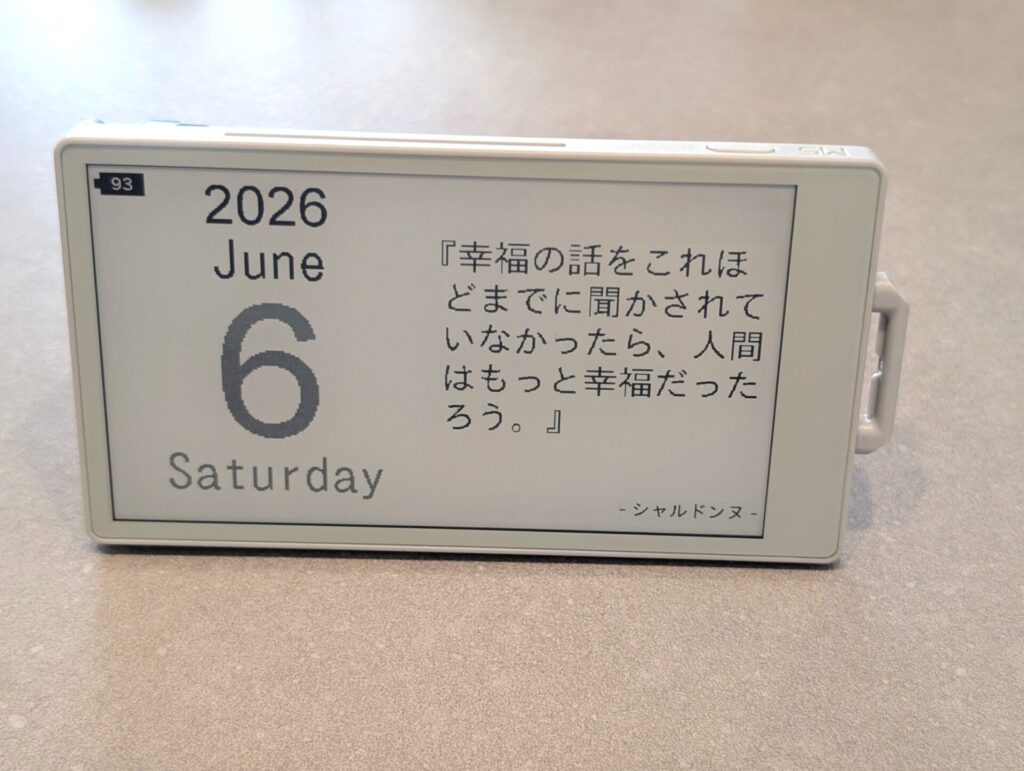

自動画面回転

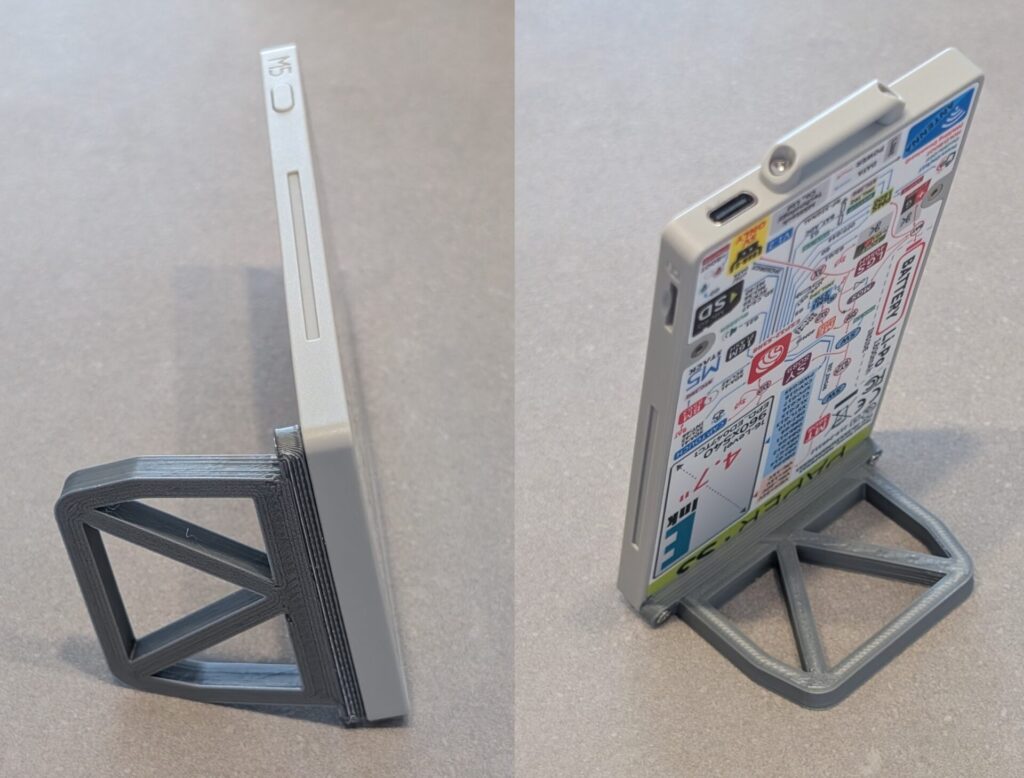

本体を縦向き・横向きのどちらで設置しても、自動的に向きを検出して表示を切り替えます。付属の3Dプリント製スタンドは、どちらの向きでも設置できるように設計されています。

超低消費電力設計

毎日午前0時を少し過ぎたタイミングでのみ起動し、日付の更新と新しい名言の取得を行います。それ以外の時間はRTC（リアルタイムクロック）を利用したディープスリープ状態を維持します。さらに、表示保持に電力をほとんど必要としない電子ペーパーディスプレイを採用しているため、1回の充電で1週間以上動作します。

APIによる名言取得と時刻同期

名言は「名言教えるよ！」APIから取得しています。また、時刻はNTP（Network Time Protocol）によってインターネット経由で自動同期されるため、常に正確な日時を表示できます。

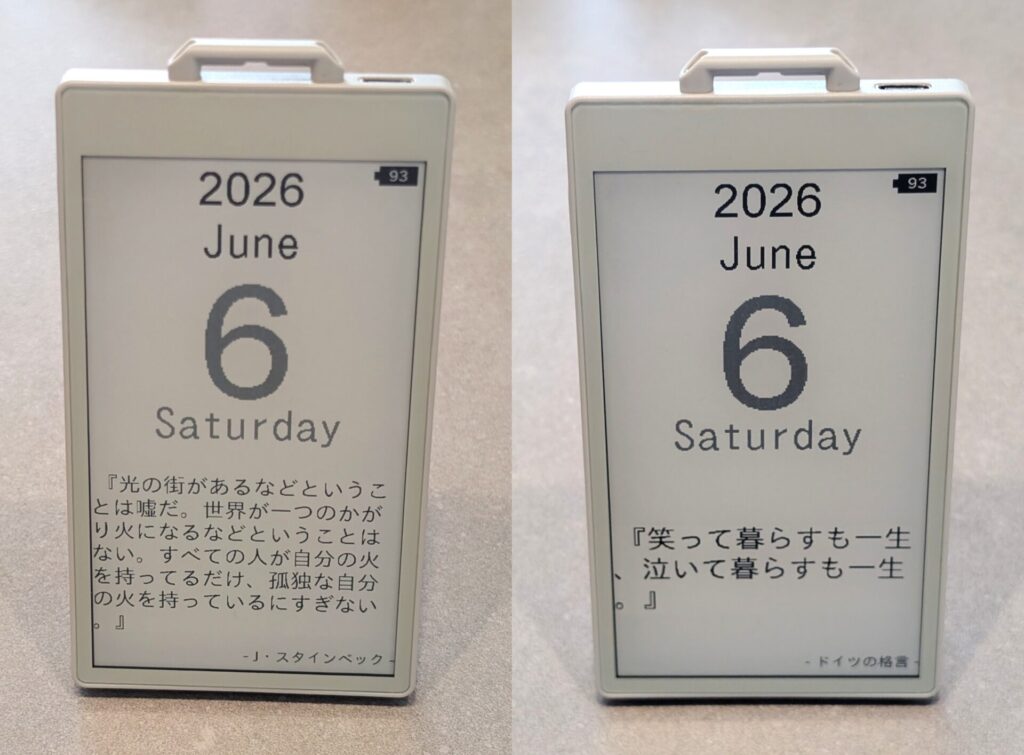

名言の長さに応じた自動文字サイズ調整

名言の文字数に応じてフォントサイズを自動で調整します。長い名言でも表示領域内に収まるよう最適化されるため、文章が途中で切れてしまうことなく表示できます。

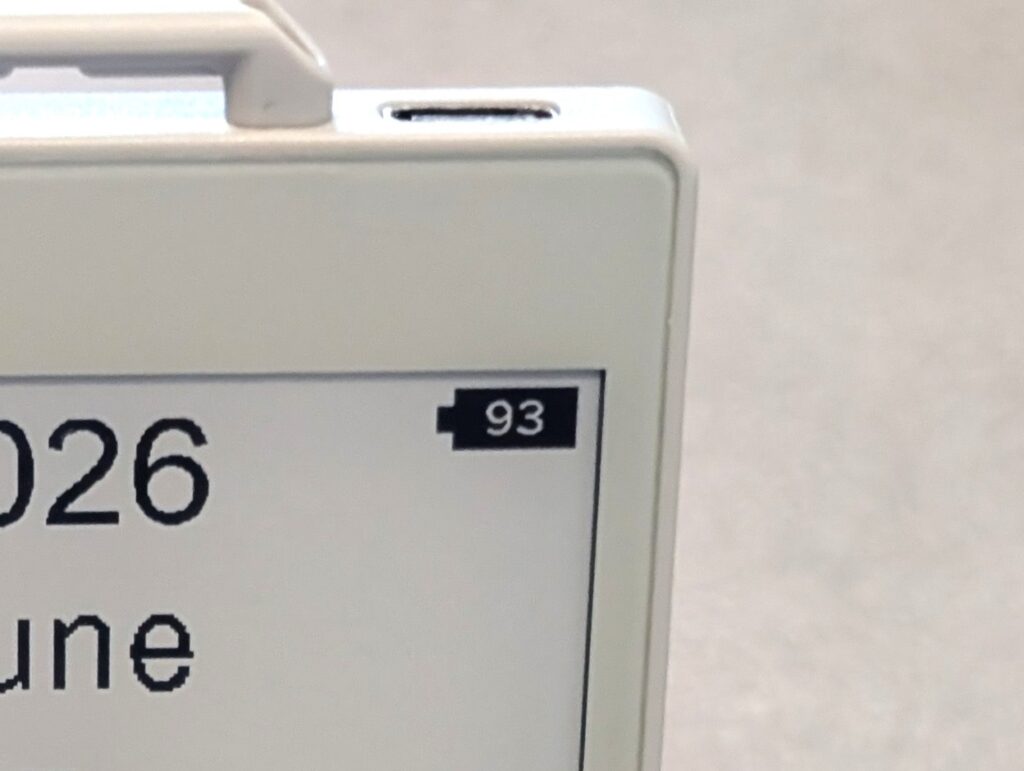

バッテリー残量表示

画面上にバッテリー残量を表示することで、充電が必要なタイミングをひと目で確認できます。

Arduinoコード

//日めくりカレンダー名言付き
#include <M5Unified.h>
#include <WiFi.h>
#include <time.h>
#include <HTTPClient.h>
#include <Arduino_JSON.h>

// ===== WiFi設定 =====
#define WIFI_SSID     "YourWifiSSID"
#define WIFI_PASSWORD "YourWifiPassword"

// 名言API
const char* apiUrl = "https://meigen.doodlenote.net/api/json.php?c=1";

const bool EnableRotate = true; //横向き表示を有効にする

// ===== レイアウト関連定数 =====
const int MARGIN_X = 10;
const int MARGIN_Y = 10;
//const int LINE_SPACING = 34;
const int AUTHOR_MARGIN = 70;
int y_year    = 20;
int y_month   = 100;
int y_day     = 200;
int y_weekday = 430;
int y_meigen = 530;
int NTP_ICON_X = 400;
int NTP_ICON_Y = 10;
int NTP_ICON_SIZE = 50;
bool isLandscape = false;

// ===== NTP設定（日本）=====
#if __has_include(<esp_sntp.h>)
#include <esp_sntp.h>
#define SNTP_ENABLED 1
#elif __has_include(<sntp.h>)
#include <sntp.h>
#define SNTP_ENABLED 1
#endif

#ifndef SNTP_ENABLED
#define SNTP_ENABLED 0
#endif

#define NTP_TIMEZONE "UTC-9"  // POSIX standard, in which "UTC+0" is UTC London, "UTC-8" is UTC+8 Beijing, "UTC+5" is UTC-5 New York
#define NTP_SERVER1  "0.pool.ntp.org"
#define NTP_SERVER2  "1.pool.ntp.org"
#define NTP_SERVER3  "2.pool.ntp.org"

//NTP, WiFi接続完了のフラグ
bool ntpSynced, wifiConnected;

const char* MONTH_EN[] = {
  "January", "February", "March", "April", "May", "June",
  "July", "August", "September", "October", "November", "December"
};

const char* WEEKDAY_EN[] = {
  "Sunday", "Monday", "Tuesday", "Wednesday",
  "Thursday", "Friday", "Saturday"
};

const char* WEEKDAY_JP[] = {"日", "月", "火", "水", "木", "金", "土"};

// --------------------------------------------------
// 名言のフォントサイズを自動調整
// --------------------------------------------------
float decideTextSizeToFit(
  const String& meigen,
  int areaWidth,
  int areaHeight,
  int* outTextHeight
) {
  const float TEXT_SIZE_MAX = 1.3;
  const float TEXT_SIZE_MIN = 0.3;
  const float TEXT_STEP     = 0.1;

  M5.Display.setFont(&fonts::lgfxJapanGothicP_40);

  for (float size = TEXT_SIZE_MAX; size >= TEXT_SIZE_MIN; size -= TEXT_STEP) {
    M5.Display.setTextSize(size);

    int fontH = M5.Display.fontHeight();
    int textW = M5.Display.textWidth(meigen);

    int lines = (textW + areaWidth - 1) / areaWidth;
    int textHeight = lines * fontH;

    Serial.printf(
      "[FontCheck] size=%.1f fontH=%d textW=%d lines=%d textH=%d\n",
      size, fontH, textW, lines, textHeight
    );

    if (textHeight <= areaHeight) {
      *outTextHeight = textHeight;
      Serial.printf("[FontSelect] size=%.1f selected\n", size);
      return size;
    }
  }

  // フォールバック
  M5.Display.setTextSize(TEXT_SIZE_MIN);
  *outTextHeight = areaHeight;

  Serial.println("[FontSelect] fallback to min size");
  return TEXT_SIZE_MIN;
}

// --------------------------------------------------
// 名言を自動改行で表示、作者を右揃え
// --------------------------------------------------
void displayQuote(const String& meigen, const String& auther)
{
  int screenW = M5.Display.width();
  int screenH = M5.Display.height();

  M5.Display.setTextColor(BLACK, WHITE);

  // ==================================================
  // 縦表示
  // ==================================================
  if (!isLandscape)
  {
    int areaTop    = y_meigen;
    int areaBottom = screenH - MARGIN_Y;
    int areaHeight = areaBottom - areaTop;
    int areaWidth  = screenW - MARGIN_X * 2;

    int quoteTextHeight = 0;

    float quoteTextSize =
      decideTextSizeToFit(
        meigen,
        areaWidth,
        areaHeight - AUTHOR_MARGIN,
        &quoteTextHeight
      );

    int startY =
      areaTop +
      (areaHeight - quoteTextHeight - AUTHOR_MARGIN) / 2;

    M5.Display.setFont(&fonts::lgfxJapanGothicP_40);
    M5.Display.setTextSize(quoteTextSize);
    M5.Display.setTextDatum(top_left);

    M5.Display.setCursor(MARGIN_X, startY);
    M5.Display.printf("『%s』", meigen.c_str());

    M5.Display.setFont(&fonts::lgfxJapanGothicP_28);
    M5.Display.setTextSize(1);

    String authorText = "- " + auther + " -";

    int w = M5.Display.textWidth(authorText);

    M5.Display.drawString(
        authorText,
        M5.Display.width() - w,
        screenH - 45
    );

    return;
  }

  // ==================================================
  // 横表示
  // ==================================================

  int quoteCenterX = screenW * 3 / 4;

  int quoteAreaW = screenW / 2 - 40;

  int quoteTextHeight = 0;

  float quoteTextSize =
    decideTextSizeToFit(
      meigen,
      quoteAreaW,
      screenH - 120,
      &quoteTextHeight
    );

  String quoteText = "『" + meigen + "』";

  M5.Display.setFont(&fonts::lgfxJapanGothicP_40);
  M5.Display.setTextSize(quoteTextSize);

  int quoteWidth =
    M5.Display.textWidth(quoteText);

  int quoteX =
    quoteCenterX - quoteWidth / 2;

  int quoteY =
    (screenH - quoteTextHeight) / 2 - 30;

  M5.Display.setClipRect(
    screenW / 2,
    0,
    screenW / 2,
    screenH
  );

  M5.Display.setTextWrap(true);
  M5.Display.setCursor(quoteX, quoteY);
  M5.Display.print(quoteText);

  M5.Display.clearClipRect();

  // 作者
  M5.Display.setFont(&fonts::lgfxJapanGothicP_28);
  M5.Display.setTextSize(1);

  String authorText = "- " + auther + " -";

  M5.Display.setTextDatum(bottom_right);

  M5.Display.drawString(
      "- " + auther + " -",
      M5.Display.width()-10,
      M5.Display.height() - 20
  );
}

void setup() {
  Serial.begin(115200);
  //delay(2000);//USBSerilaの準備完了までの待ち

  Serial.println("=== BOOT ===");

  auto cfg = M5.config();
  M5.begin(cfg);

  //横向き表示を有効に
  if(EnableRotate){
    M5.Imu.begin();
    delay(500);//IMUが安定するまで待つ
    int rotation = updateRotationByIMU();
    Serial.printf("rotation=%d\n", rotation);
    M5.Display.setRotation(rotation);
    isLandscape = (rotation == 1 || rotation == 3);
  }
  else{
    M5.Display.setRotation(2);
  }
  setupLayout();

  M5.Display.setEpdMode(epd_quality);  // epd_quality, epd_text, epd_fast, epd_fastest

  //タイムゾーン設定
  setenv("TZ", NTP_TIMEZONE, 1);
  tzset();

  //RTCの値を内蔵時計と同期
  syncRtcToSystemTime();

  // ---- WiFi接続 ----
  Serial.println("[WiFi] Connecting...");
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  if (WiFi.waitForConnectResult() == WL_CONNECTED) {
    wifiConnected = true;
    //NTP同期、RTCに書き込み
    ntpSynced = syncTimeWithNTP();
  }
  else{
    Serial.println("WiFi Connect Failed");
    wifiConnected = false;
  }

  //日時呼び出し
  time_t t = time(nullptr);
  struct tm timeinfo;
  localtime_r(&t, &timeinfo);

  // ---- 日時取得内容確認 ----
  Serial.println("[NTP] Time acquired");
  Serial.printf("  %04d/%02d/%02d %02d:%02d:%02d\n",
                timeinfo.tm_year + 1900,
                timeinfo.tm_mon + 1,
                timeinfo.tm_mday,
                timeinfo.tm_hour,
                timeinfo.tm_min,
                timeinfo.tm_sec);

  Serial.printf("  weekday = %d (%s)\n",
                timeinfo.tm_wday,
                WEEKDAY_JP[timeinfo.tm_wday]);

  // ---- カレンダー表示 ----
  M5.Display.clear();
  drawCalendar(timeinfo);

  // ---- バッテリ残量 ----
  int batt = M5.Power.getBatteryLevel();  // 0〜100
  if(isLandscape){
    drawBatteryIcon(15, 10, batt);
  }
  else{
    drawBatteryIcon(M5.Display.width() - 70, 10, batt);
  }

  //WiFi接続時
  if (wifiConnected) {
    // ---- 名言表示 ----
    fetchAndShowQuote();

    //WiFi切断
    WiFi.disconnect(true);
    WiFi.mode(WIFI_OFF);
    Serial.println("[WiFi] OFF");

    if(!ntpSynced){
      //NTP同期失敗アイコンを表示
      Serial.println("NTP Sync Failed");
      drawNtpErrorIcon();
    }
  }
  else{
    Serial.println("WiFi Connect Failed");
    drawNtpErrorIcon();
  }

  Serial.println("[DISPLAY] done");

  // ---- 次の0:00計算 ----
  time_t now = mktime(&timeinfo);

  struct tm nextDay = timeinfo;
  nextDay.tm_hour = 0;
  nextDay.tm_min  = 15;//次の日ギリギリにならないように15分追加
  nextDay.tm_sec  = 0;
  nextDay.tm_mday += 1;

  time_t next = mktime(&nextDay);
  uint64_t sleep_sec = difftime(next, now);

  Serial.printf("[SLEEP] sleep_sec = %llu\n", sleep_sec);
  Serial.println("[SLEEP] deep sleep in 10 seconds...");

  delay(500);

  esp_sleep_enable_timer_wakeup(sleep_sec * 1000000ULL);
  esp_deep_sleep_start();
}

void loop() {
}

// ===============================
// 日付・曜日描画
// ===============================
void drawCalendar(struct tm& t) {
  Serial.println("[DISPLAY] drawCalendar()");
  int w = M5.Display.width();
  int h = M5.Display.height();
  int cx;

  if (isLandscape)
  {
      // 左半分の中央
      cx = w / 4;
  }
  else
  {
      cx = w / 2;
  }

  char buf[32];

  // ---- 年 ----
  M5.Display.setTextColor(BLACK);
  M5.Display.setTextDatum(top_center);
  M5.Display.setTextSize(0.8);
  M5.Display.setFont(&fonts::Font8);//数字のみ
  snprintf(buf, sizeof(buf), "%d", t.tm_year + 1900);
  M5.Display.drawString(buf, cx, y_year);

  // ---- 月（英語）----
  M5.Display.setTextSize(2);   // フォントを小さく
  M5.Display.setFont(&fonts::lgfxJapanGothic_40);
  M5.Display.drawString(MONTH_EN[t.tm_mon], cx, y_month);

  //土日はフォントの色を薄くする
  bool isWeekend = (t.tm_wday == 0 || t.tm_wday == 6);
  uint16_t mainColor = isWeekend ? DARKGREY : BLACK;
  M5.Display.setTextColor(mainColor, WHITE);

  // ---- 日（大きく）----
  M5.Display.setTextSize(3);   // フォントを大きく
  M5.Display.setFont(&fonts::Font8);//数字のみ
  snprintf(buf, sizeof(buf), "%d", t.tm_mday);
  M5.Display.drawString(buf, cx, y_day);
  M5.Display.setTextSize(1);   // 戻す

  // ---- 曜日（英語）----
  M5.Display.setTextSize(2);   // フォントを小さく
  M5.Display.setFont(&fonts::lgfxJapanGothic_40);
  M5.Display.drawString(WEEKDAY_EN[t.tm_wday], cx, y_weekday);

  // 色を戻す
  M5.Display.setTextColor(BLACK, WHITE);

  Serial.println("Calendar Display End");
}

void setupLayout()
{
  if (!isLandscape)
  {
    // ===== 縦 =====
    y_year    = 20;
    y_month   = 100;
    y_day     = 200;
    y_weekday = 430;
    y_meigen  = 530;

    NTP_ICON_X = 400;
    NTP_ICON_Y = 10;
  }
  else
  {
    // ===== 横 =====
    y_year    = 20;
    y_month   = 90;
    y_day     = 180;
    y_weekday = 420;
    y_meigen  = 0;

    NTP_ICON_X = 880;
    NTP_ICON_Y = 10;
  }
}

// --------------------------------------------------
//バッテリアイコン表示
// --------------------------------------------------
void drawBatteryIcon(int x, int y, int level) {
  Serial.printf("[DISPLAY] drawBattery(), Level = %d\n",level);
  const int w = 60;
  const int h = 32;
  const int capW = 8;
  const int capH = 14;

  // 本体（黒）
  M5.Display.fillRect(x, y, w, h, BLACK);

  // 端子
  M5.Display.fillRect(x-capW, y + (h-capH)/2, capW, capH, BLACK);

  // 数字（白）
  char buf[8];
  snprintf(buf, sizeof(buf), "%d", level);

  M5.Display.setTextColor(WHITE, BLACK);
  M5.Display.setTextSize(1);
  M5.Display.setFont(&fonts::lgfxJapanGothicP_24);
  M5.Display.drawCentreString(buf, x + w/2, y + 2);

  // 色を戻す
  M5.Display.setTextColor(BLACK, WHITE);
}

// --------------------------------------------------
// APIから名言を取得
// --------------------------------------------------
void fetchAndShowQuote() {
  Serial.println("[DISPLAY] fetchAndShowQuote()");
  if (WiFi.status() != WL_CONNECTED) return;

  HTTPClient http;
  http.begin(apiUrl);
  int httpCode = http.GET();
  if (httpCode <= 0) {
    http.end();
    return;
  }

  String payload = http.getString();
  http.end();

  JSONVar root = JSON.parse(payload);
  if (JSON.typeof(root) == "undefined") return;

  String meigen = root[0]["meigen"];
  String auther = root[0]["auther"];
  Serial.print("Meigen: ");
  Serial.println(meigen);
  Serial.print("Auther: ");
  Serial.println(auther);

  displayQuote(meigen, auther);
}

// --------------------------------------------------
//加速度で画面の向きを調整
// --------------------------------------------------
int updateRotationByIMU() {
  float ax, ay, az;
  int rot;

  // 加速度取得
  M5.Imu.update();
  if (!M5.Imu.getAccel(&ax, &ay, &az)) {
    Serial.println("getAccel Failed");
    return 3; // 取得失敗時
  }
  Serial.printf("Accel x:%f, y:%f, z:%f\n",ax,ay,az);

  if (ay < -0.7) {
    rot = 3;   // 通常横
  } else if (ay > 0.7) {
    rot = 1;   // 逆さ横
  } else if (ax > 0.7) {
    rot = 0;   // 通常縦
  } else if (ax < -0.7) {
    rot = 2;   // 逆さ縦
  } else {
    rot = 3;
  }
  return rot;
}

// --------------------------------------------------
// 時刻をRTCからUTCで抜き出す
// --------------------------------------------------
time_t timegm_like(struct tm *tm){
  char *old_tz = getenv("TZ");
  setenv("TZ", "UTC0", 1);
  tzset();
  time_t t = mktime(tm);
  setenv("TZ", NTP_TIMEZONE, 1);
  tzset();
  return t;
}

// --------------------------------------------------
// RTCから内蔵時計へ時間を書き出し
// --------------------------------------------------
void syncRtcToSystemTime() {
  m5::rtc_time_t rtcTime;
  m5::rtc_date_t rtcDate;
  if (M5.Rtc.getTime(&rtcTime) && M5.Rtc.getDate(&rtcDate))
  {
    struct tm tm_utc = {};
    tm_utc.tm_year = rtcDate.year - 1900;
    tm_utc.tm_mon  = rtcDate.month - 1;
    tm_utc.tm_mday = rtcDate.date;
    tm_utc.tm_hour = rtcTime.hours;
    tm_utc.tm_min  = rtcTime.minutes;
    tm_utc.tm_sec  = rtcTime.seconds;

    time_t epoch = timegm_like(&tm_utc);

    struct timeval tv;
    tv.tv_sec  = epoch;
    tv.tv_usec = 0;
    settimeofday(&tv, nullptr);

    Serial.printf(
        "[RTC->SYS] %04d-%02d-%02d %02d:%02d:%02d UTC -> epoch=%ld\n",
        rtcDate.year, rtcDate.month, rtcDate.date,
        rtcTime.hours, rtcTime.minutes, rtcTime.seconds,
        (long)epoch
    );
  }
  else
  {
    Serial.println("[RTC] read failed");
  }
}

// --------------------------------------------------
//RTCをNTP(UTC)に同期する
// --------------------------------------------------
bool syncTimeWithNTP(){
  Serial.println("\nWiFi connected");

  //ESP32の内蔵時計をNTPと同期
  configTzTime(NTP_TIMEZONE, NTP_SERVER1, NTP_SERVER2, NTP_SERVER3);

  Serial.print("Time Zone:");
  Serial.println(getenv("TZ"));

  Serial.print("NTP: ");
  uint32_t start = millis();
  #if SNTP_ENABLED
    Serial.println("SNTP_Enabled");
    while (sntp_get_sync_status() != SNTP_SYNC_STATUS_COMPLETED) {
      if (millis() - start > 10000) {
        Serial.println("[NTP] sync timeout");
        return false;
      }
      Serial.print(".");
      delay(500);
    }
  #else
    Serial.println("SNTP_Unabled");
    struct tm timeInfo;
    while (!getLocalTime(&timeInfo, 1000)) {
      if (millis() - start > 10000) {
        Serial.println("[NTP] sync timeout");
        return false;
      }
      Serial.print(".");
      delay(500);
    }
  #endif
  Serial.println("\nNTP connected");

  time_t t = time(nullptr) + 1;  // Advance one second //time(nullptr)=1970/1/1
  while (t > time(nullptr))
    ;  // Synchronization in seconds(内蔵時計の秒未満のタイミングを0にそろえる)
  M5.Rtc.setDateTime(gmtime(&t));//RTCにNTP同期の時間(UTC)を書き込み
  return true;
}

// --------------------------------------------------
//NTP同期失敗時のアイコン表示
// --------------------------------------------------
void drawNtpErrorIcon()
{
  int cx = NTP_ICON_X + NTP_ICON_SIZE / 2;
  int cy = NTP_ICON_Y + NTP_ICON_SIZE / 2;
  int r  = NTP_ICON_SIZE / 2 - 1;

  // 念のため背景クリア
  M5.Display.fillRect(
    NTP_ICON_X,
    NTP_ICON_Y,
    NTP_ICON_SIZE,
    NTP_ICON_SIZE,
    WHITE
  );

  // 黒い円（●）
  M5.Display.fillCircle(cx, cy, r, BLACK);

  // 白い「!」
  M5.Display.setTextColor(WHITE, BLACK);
  M5.Display.setTextDatum(middle_center);
  M5.Display.setFont(&fonts::Font4);
  M5.Display.setTextSize(1.5);

  M5.Display.drawString("!", cx, cy + 5);

  // 後始末（他描画への影響防止）
  M5.Display.setTextColor(BLACK, WHITE);
  M5.Display.setTextDatum(top_left);

  Serial.println("[EPD] NTP error icon drawn");
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

//日めくりカレンダー名言付き

#include <M5Unified.h>

#include <WiFi.h>

#include <time.h>

#include <HTTPClient.h>

#include <Arduino_JSON.h>

// ===== WiFi設定 =====

#define WIFI_SSID "YourWifiSSID"

#define WIFI_PASSWORD "YourWifiPassword"

// 名言API

const char* apiUrl = "https://meigen.doodlenote.net/api/json.php?c=1";

const bool EnableRotate = true; //横向き表示を有効にする

// ===== レイアウト関連定数 =====

const int MARGIN_X = 10;

const int MARGIN_Y = 10;

//const int LINE_SPACING = 34;

const int AUTHOR_MARGIN = 70;

int y_year = 20;

int y_month = 100;

int y_day = 200;

int y_weekday = 430;

int y_meigen = 530;

int NTP_ICON_X = 400;

int NTP_ICON_Y = 10;

int NTP_ICON_SIZE = 50;

bool isLandscape = false;

// ===== NTP設定（日本）=====

#if __has_include(<esp_sntp.h>)

#include <esp_sntp.h>

#define SNTP_ENABLED 1

#elif __has_include(<sntp.h>)

#include <sntp.h>

#define SNTP_ENABLED 1

#endif

#ifndef SNTP_ENABLED

#define SNTP_ENABLED 0

#endif

#define NTP_TIMEZONE "UTC-9" // POSIX standard, in which "UTC+0" is UTC London, "UTC-8" is UTC+8 Beijing, "UTC+5" is UTC-5 New York

#define NTP_SERVER1 "0.pool.ntp.org"

#define NTP_SERVER2 "1.pool.ntp.org"

#define NTP_SERVER3 "2.pool.ntp.org"

//NTP, WiFi接続完了のフラグ

bool ntpSynced, wifiConnected;

const char* MONTH_EN[] = {

"January", "February", "March", "April", "May", "June",

"July", "August", "September", "October", "November", "December"

};

const char* WEEKDAY_EN[] = {

"Sunday", "Monday", "Tuesday", "Wednesday",

"Thursday", "Friday", "Saturday"

};

const char* WEEKDAY_JP[] = {"日", "月", "火", "水", "木", "金", "土"};

// --------------------------------------------------

// 名言のフォントサイズを自動調整

// --------------------------------------------------

float decideTextSizeToFit(

const String& meigen,

int areaWidth,

int areaHeight,

int* outTextHeight

) {

const float TEXT_SIZE_MAX = 1.3;

const float TEXT_SIZE_MIN = 0.3;

const float TEXT_STEP = 0.1;

M5.Display.setFont(&fonts::lgfxJapanGothicP_40);

for (float size = TEXT_SIZE_MAX; size >= TEXT_SIZE_MIN; size -= TEXT_STEP) {

M5.Display.setTextSize(size);

int fontH = M5.Display.fontHeight();

int textW = M5.Display.textWidth(meigen);

int lines = (textW + areaWidth - 1) / areaWidth;

int textHeight = lines * fontH;

Serial.printf(

"[FontCheck] size=%.1f fontH=%d textW=%d lines=%d textH=%d\n",

size, fontH, textW, lines, textHeight

);

if (textHeight <= areaHeight) {

*outTextHeight = textHeight;

Serial.printf("[FontSelect] size=%.1f selected\n", size);

return size;

}

// フォールバック

M5.Display.setTextSize(TEXT_SIZE_MIN);

*outTextHeight = areaHeight;

Serial.println("[FontSelect] fallback to min size");

return TEXT_SIZE_MIN;

}

// --------------------------------------------------

// 名言を自動改行で表示、作者を右揃え

// --------------------------------------------------

void displayQuote(const String& meigen, const String& auther)

{

int screenW = M5.Display.width();

int screenH = M5.Display.height();

M5.Display.setTextColor(BLACK, WHITE);

// ==================================================

// 縦表示

// ==================================================

if (!isLandscape)

{

int areaTop = y_meigen;

int areaBottom = screenH - MARGIN_Y;

int areaHeight = areaBottom - areaTop;

int areaWidth = screenW - MARGIN_X * 2;

int quoteTextHeight = 0;

float quoteTextSize =

decideTextSizeToFit(

meigen,

areaWidth,

areaHeight - AUTHOR_MARGIN,

&quoteTextHeight

);

int startY =

areaTop +

(areaHeight - quoteTextHeight - AUTHOR_MARGIN) / 2;

M5.Display.setFont(&fonts::lgfxJapanGothicP_40);

M5.Display.setTextSize(quoteTextSize);

M5.Display.setTextDatum(top_left);

M5.Display.setCursor(MARGIN_X, startY);

M5.Display.printf("『%s』", meigen.c_str());

M5.Display.setFont(&fonts::lgfxJapanGothicP_28);

M5.Display.setTextSize(1);

String authorText = "- " + auther + " -";

int w = M5.Display.textWidth(authorText);

M5.Display.drawString(

authorText,

M5.Display.width() - w,

screenH - 45

);

return;

}

// ==================================================

// 横表示

// ==================================================

int quoteCenterX = screenW * 3 / 4;

int quoteAreaW = screenW / 2 - 40;

int quoteTextHeight = 0;

float quoteTextSize =

decideTextSizeToFit(

meigen,

quoteAreaW,

screenH - 120,

&quoteTextHeight

);

String quoteText = "『" + meigen + "』";

M5.Display.setFont(&fonts::lgfxJapanGothicP_40);

M5.Display.setTextSize(quoteTextSize);

int quoteWidth =

M5.Display.textWidth(quoteText);

int quoteX =

quoteCenterX - quoteWidth / 2;

int quoteY =

(screenH - quoteTextHeight) / 2 - 30;

M5.Display.setClipRect(

screenW / 2,

screenH

);

M5.Display.setTextWrap(true);

M5.Display.setCursor(quoteX, quoteY);

M5.Display.print(quoteText);

M5.Display.clearClipRect();

// 作者

M5.Display.setFont(&fonts::lgfxJapanGothicP_28);

M5.Display.setTextSize(1);

String authorText = "- " + auther + " -";

M5.Display.setTextDatum(bottom_right);

M5.Display.drawString(

"- " + auther + " -",

M5.Display.width()-10,

M5.Display.height() - 20

);

}

void setup() {

Serial.begin(115200);

//delay(2000);//USBSerilaの準備完了までの待ち

Serial.println("=== BOOT ===");

auto cfg = M5.config();

M5.begin(cfg);

//横向き表示を有効に

if(EnableRotate){

M5.Imu.begin();

delay(500);//IMUが安定するまで待つ

int rotation = updateRotationByIMU();

Serial.printf("rotation=%d\n", rotation);

M5.Display.setRotation(rotation);

isLandscape = (rotation == 1 || rotation == 3);

}

else{

M5.Display.setRotation(2);

}

setupLayout();

M5.Display.setEpdMode(epd_quality); // epd_quality, epd_text, epd_fast, epd_fastest

//タイムゾーン設定

setenv("TZ", NTP_TIMEZONE, 1);

tzset();

//RTCの値を内蔵時計と同期

syncRtcToSystemTime();

// ---- WiFi接続 ----

Serial.println("[WiFi] Connecting...");

WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

if (WiFi.waitForConnectResult() == WL_CONNECTED) {

wifiConnected = true;

//NTP同期、RTCに書き込み

ntpSynced = syncTimeWithNTP();

}

else{

Serial.println("WiFi Connect Failed");

wifiConnected = false;

}

//日時呼び出し

time_t t = time(nullptr);

struct tm timeinfo;

localtime_r(&t, &timeinfo);

// ---- 日時取得内容確認 ----

Serial.println("[NTP] Time acquired");

Serial.printf(" %04d/%02d/%02d %02d:%02d:%02d\n",

timeinfo.tm_year + 1900,

timeinfo.tm_mon + 1,

timeinfo.tm_mday,

timeinfo.tm_hour,

timeinfo.tm_min,

timeinfo.tm_sec);

Serial.printf(" weekday = %d (%s)\n",

timeinfo.tm_wday,

WEEKDAY_JP[timeinfo.tm_wday]);

// ---- カレンダー表示 ----

M5.Display.clear();

drawCalendar(timeinfo);

// ---- バッテリ残量 ----

int batt = M5.Power.getBatteryLevel(); // 0〜100

if(isLandscape){

drawBatteryIcon(15, 10, batt);

}

else{

drawBatteryIcon(M5.Display.width() - 70, 10, batt);

}

//WiFi接続時

if (wifiConnected) {

// ---- 名言表示 ----

fetchAndShowQuote();

//WiFi切断

WiFi.disconnect(true);

WiFi.mode(WIFI_OFF);

Serial.println("[WiFi] OFF");

if(!ntpSynced){

//NTP同期失敗アイコンを表示

Serial.println("NTP Sync Failed");

drawNtpErrorIcon();

}

else{

Serial.println("WiFi Connect Failed");

drawNtpErrorIcon();

}

Serial.println("[DISPLAY] done");

// ---- 次の0:00計算 ----

time_t now = mktime(&timeinfo);

struct tm nextDay = timeinfo;

nextDay.tm_hour = 0;

nextDay.tm_min = 15;//次の日ギリギリにならないように15分追加

nextDay.tm_sec = 0;

nextDay.tm_mday += 1;

time_t next = mktime(&nextDay);

uint64_t sleep_sec = difftime(next, now);

Serial.printf("[SLEEP] sleep_sec = %llu\n", sleep_sec);

Serial.println("[SLEEP] deep sleep in 10 seconds...");

delay(500);

esp_sleep_enable_timer_wakeup(sleep_sec * 1000000ULL);

esp_deep_sleep_start();

}

void loop() {

}

// ===============================

// 日付・曜日描画

// ===============================

void drawCalendar(struct tm& t) {

Serial.println("[DISPLAY] drawCalendar()");

int w = M5.Display.width();

int h = M5.Display.height();

int cx;

if (isLandscape)

{

// 左半分の中央

cx = w / 4;

}

else

{

cx = w / 2;

}

char buf[32];

// ---- 年 ----

M5.Display.setTextColor(BLACK);

M5.Display.setTextDatum(top_center);

M5.Display.setTextSize(0.8);

M5.Display.setFont(&fonts::Font8);//数字のみ

snprintf(buf, sizeof(buf), "%d", t.tm_year + 1900);

M5.Display.drawString(buf, cx, y_year);

// ---- 月（英語）----

M5.Display.setTextSize(2); // フォントを小さく

M5.Display.setFont(&fonts::lgfxJapanGothic_40);

M5.Display.drawString(MONTH_EN[t.tm_mon], cx, y_month);

//土日はフォントの色を薄くする

bool isWeekend = (t.tm_wday == 0 || t.tm_wday == 6);

uint16_t mainColor = isWeekend ? DARKGREY : BLACK;

M5.Display.setTextColor(mainColor, WHITE);

// ---- 日（大きく）----

M5.Display.setTextSize(3); // フォントを大きく

M5.Display.setFont(&fonts::Font8);//数字のみ

snprintf(buf, sizeof(buf), "%d", t.tm_mday);

M5.Display.drawString(buf, cx, y_day);

M5.Display.setTextSize(1); // 戻す

// ---- 曜日（英語）----

M5.Display.setTextSize(2); // フォントを小さく

M5.Display.setFont(&fonts::lgfxJapanGothic_40);

M5.Display.drawString(WEEKDAY_EN[t.tm_wday], cx, y_weekday);

// 色を戻す

M5.Display.setTextColor(BLACK, WHITE);

Serial.println("Calendar Display End");

}

void setupLayout()

{

if (!isLandscape)

{

// ===== 縦 =====

y_year = 20;

y_month = 100;

y_day = 200;

y_weekday = 430;

y_meigen = 530;

NTP_ICON_X = 400;

NTP_ICON_Y = 10;

}

else

{

// ===== 横 =====

y_year = 20;

y_month = 90;

y_day = 180;

y_weekday = 420;

y_meigen = 0;

NTP_ICON_X = 880;

NTP_ICON_Y = 10;

}

// --------------------------------------------------

//バッテリアイコン表示

// --------------------------------------------------

void drawBatteryIcon(int x, int y, int level) {

Serial.printf("[DISPLAY] drawBattery(), Level = %d\n",level);

const int w = 60;

const int h = 32;

const int capW = 8;

const int capH = 14;

// 本体（黒）

M5.Display.fillRect(x, y, w, h, BLACK);

// 端子

M5.Display.fillRect(x-capW, y + (h-capH)/2, capW, capH, BLACK);

// 数字（白）

char buf[8];

snprintf(buf, sizeof(buf), "%d", level);

M5.Display.setTextColor(WHITE, BLACK);

M5.Display.setTextSize(1);

M5.Display.setFont(&fonts::lgfxJapanGothicP_24);

M5.Display.drawCentreString(buf, x + w/2, y + 2);

// 色を戻す

M5.Display.setTextColor(BLACK, WHITE);

}

// --------------------------------------------------

// APIから名言を取得

// --------------------------------------------------

void fetchAndShowQuote() {

Serial.println("[DISPLAY] fetchAndShowQuote()");

if (WiFi.status() != WL_CONNECTED) return;

HTTPClient http;

http.begin(apiUrl);

int httpCode = http.GET();

if (httpCode <= 0) {

http.end();

return;

}

String payload = http.getString();

http.end();

JSONVar root = JSON.parse(payload);

if (JSON.typeof(root) == "undefined") return;

String meigen = root[0]["meigen"];

String auther = root[0]["auther"];

Serial.print("Meigen: ");

Serial.println(meigen);

Serial.print("Auther: ");

Serial.println(auther);

displayQuote(meigen, auther);

}

// --------------------------------------------------

//加速度で画面の向きを調整

// --------------------------------------------------

int updateRotationByIMU() {

float ax, ay, az;

int rot;

// 加速度取得

M5.Imu.update();

if (!M5.Imu.getAccel(&ax, &ay, &az)) {

Serial.println("getAccel Failed");

return 3; // 取得失敗時

}

Serial.printf("Accel x:%f, y:%f, z:%f\n",ax,ay,az);

if (ay < -0.7) {

rot = 3; // 通常横

} else if (ay > 0.7) {

rot = 1; // 逆さ横

} else if (ax > 0.7) {

rot = 0; // 通常縦

} else if (ax < -0.7) {

rot = 2; // 逆さ縦

} else {

rot = 3;

}

return rot;

}

// --------------------------------------------------

// 時刻をRTCからUTCで抜き出す

// --------------------------------------------------

time_t timegm_like(struct tm *tm){

char *old_tz = getenv("TZ");

setenv("TZ", "UTC0", 1);

tzset();

time_t t = mktime(tm);

setenv("TZ", NTP_TIMEZONE, 1);

tzset();

return t;

}

// --------------------------------------------------

// RTCから内蔵時計へ時間を書き出し

// --------------------------------------------------

void syncRtcToSystemTime() {

m5::rtc_time_t rtcTime;

m5::rtc_date_t rtcDate;

if (M5.Rtc.getTime(&rtcTime) && M5.Rtc.getDate(&rtcDate))

{

struct tm tm_utc = {};

tm_utc.tm_year = rtcDate.year - 1900;

tm_utc.tm_mon = rtcDate.month - 1;

tm_utc.tm_mday = rtcDate.date;

tm_utc.tm_hour = rtcTime.hours;

tm_utc.tm_min = rtcTime.minutes;

tm_utc.tm_sec = rtcTime.seconds;

time_t epoch = timegm_like(&tm_utc);

struct timeval tv;

tv.tv_sec = epoch;

tv.tv_usec = 0;

settimeofday(&tv, nullptr);

Serial.printf(

"[RTC->SYS] %04d-%02d-%02d %02d:%02d:%02d UTC -> epoch=%ld\n",

rtcDate.year, rtcDate.month, rtcDate.date,

rtcTime.hours, rtcTime.minutes, rtcTime.seconds,

(long)epoch

);

}

else

{

Serial.println("[RTC] read failed");

}

// --------------------------------------------------

//RTCをNTP(UTC)に同期する

// --------------------------------------------------

bool syncTimeWithNTP(){

Serial.println("\nWiFi connected");

//ESP32の内蔵時計をNTPと同期

configTzTime(NTP_TIMEZONE, NTP_SERVER1, NTP_SERVER2, NTP_SERVER3);

Serial.print("Time Zone:");

Serial.println(getenv("TZ"));

Serial.print("NTP: ");

uint32_t start = millis();

#if SNTP_ENABLED

Serial.println("SNTP_Enabled");

while (sntp_get_sync_status() != SNTP_SYNC_STATUS_COMPLETED) {

if (millis() - start > 10000) {

Serial.println("[NTP] sync timeout");

return false;

}

Serial.print(".");

delay(500);

}

#else

Serial.println("SNTP_Unabled");

struct tm timeInfo;

while (!getLocalTime(&timeInfo, 1000)) {

if (millis() - start > 10000) {

Serial.println("[NTP] sync timeout");

return false;

}

Serial.print(".");

delay(500);

}

#endif

Serial.println("\nNTP connected");

time_t t = time(nullptr) + 1; // Advance one second //time(nullptr)=1970/1/1

while (t > time(nullptr))

; // Synchronization in seconds(内蔵時計の秒未満のタイミングを0にそろえる)

M5.Rtc.setDateTime(gmtime(&t));//RTCにNTP同期の時間(UTC)を書き込み

return true;

}

// --------------------------------------------------

//NTP同期失敗時のアイコン表示

// --------------------------------------------------

void drawNtpErrorIcon()

{

int cx = NTP_ICON_X + NTP_ICON_SIZE / 2;

int cy = NTP_ICON_Y + NTP_ICON_SIZE / 2;

int r = NTP_ICON_SIZE / 2 - 1;

// 念のため背景クリア

M5.Display.fillRect(

NTP_ICON_X,

NTP_ICON_Y,

NTP_ICON_SIZE,

WHITE

);

// 黒い円（●）

M5.Display.fillCircle(cx, cy, r, BLACK);

// 白い「!」

M5.Display.setTextColor(WHITE, BLACK);

M5.Display.setTextDatum(middle_center);

M5.Display.setFont(&fonts::Font4);

M5.Display.setTextSize(1.5);

M5.Display.drawString("!", cx, cy + 5);

// 後始末（他描画への影響防止）

M5.Display.setTextColor(BLACK, WHITE);

M5.Display.setTextDatum(top_left);

Serial.println("[EPD] NTP error icon drawn");

}
